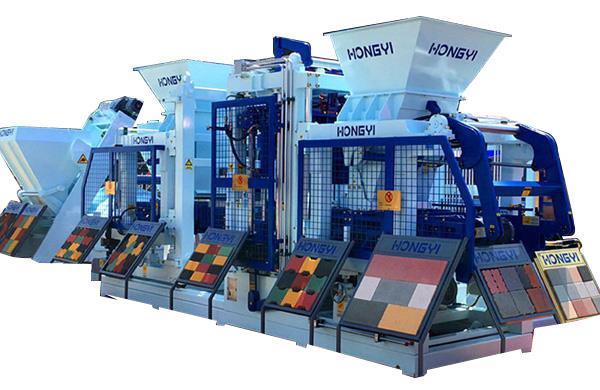

T1800 Full-Automatic Brick Making Machine

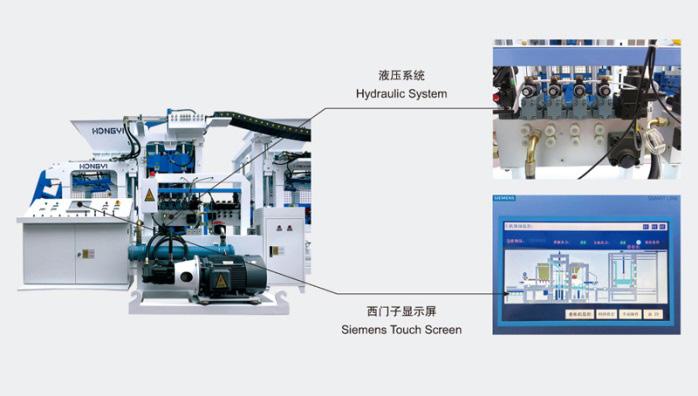

T1800 full-automatic block making machine can be flexibly configured to form various production lines. It has high-efficient molding speed and runs stably and reliably. The finished products have high initial density and good consistency.

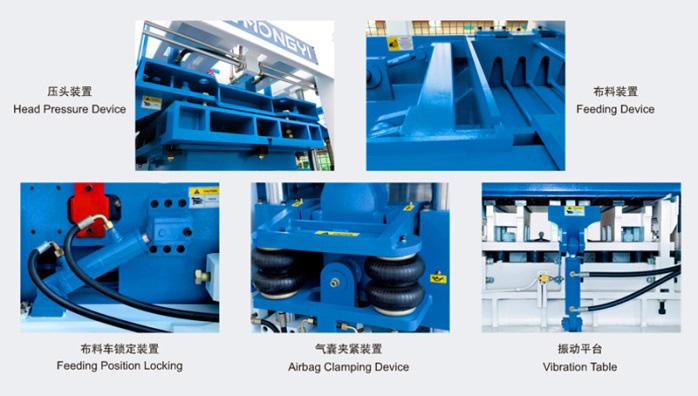

Features:- Automatic height adjustment platform
- Automatic separation of main and face mixture feeding machine after distribution
- Pressure head limit automatic hydraulic locking device
- Self-lubricating vibrator
- Horizontal material forced feeding machine with uniform distribution
- Pneumatic cutting device
- Air suspension air bag locking device
| Overall dimension | 6710×2670×3400mm | Vibration method | Synchronous mode of table & mould |
| Pallet size | 1400×950×45（Wooden）/14（Steel） | Vibration frequency | 50-70Hz |
| Working area | 1250×900mm | Machine Power | 71.7kW |
| Machine weight | 19500kg | Cycle time | 15s-25s depending on the product size |
| Specification of products (mm) | Number of blocks per pallet | Pieces/ hour | Pieces/8 hours | Pieces/300 day(two shifts) | ||
| Block |  | 400×200×200 390×190×190 | 12 | 2,880 | 23,040 | 13,824,000 |
| Hollow Brick |  | 240×115×90 | 35 | 8,400 | 67,200 | 40,320,000 |
| Paving Brick |  | 225×112.5×60 | 35 | 8,400 | 67,200 | 40,320,000 |
| Floor Brick |  | 200×100×60 | 48 | 11,520 | 92,160 | 55,296,000 |
| Standard Brick |  | 240×115×53 | 65 | 15,600 | 124,800 | 74,880,000 |
