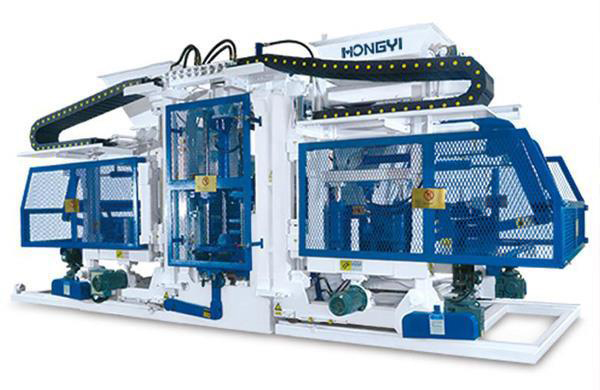

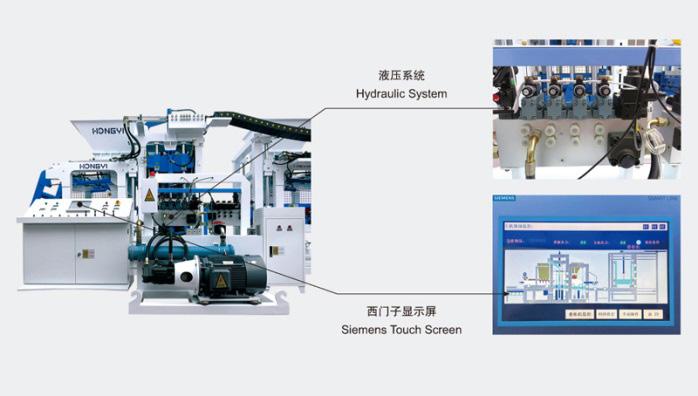

T1600 Full-Automatic Brick Making Machine

Features of T1600 full-automatic brick making machine

The work platform of T1600 brick making machine has good adaptability and can be divided into different stacking specifications according to various production arrangements.

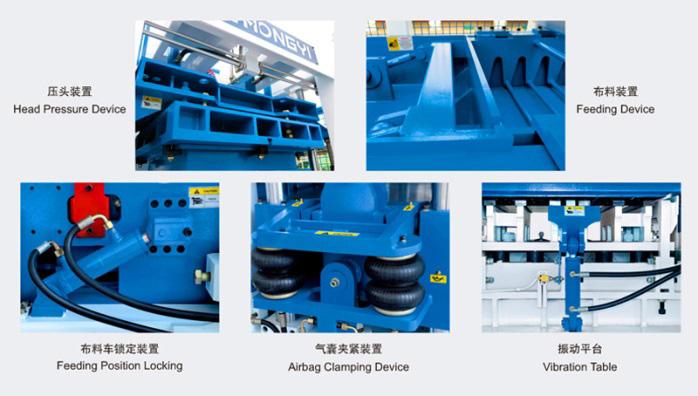

Automatic moving platform: the main and face material press machine are respectively independent on a solid frame and equipped with individual forward mechanism which can realize the automatic moving and closing.
Automatic electric platform adjustment mechanism: this mechanism can adjust according to different product height and the adjustment is convenient and fast.
Horizontal forced material feeding mechanism: this mechanism can feed materials into the mould cavity more evenly and quickly and leave the surface flat.
Pneumatic cutting device: the main and face material feeding is pneumatically cut to ensure better product quality.
By replacing moulds, products of different specifications can be produced within the effective work range.

Technical Parameters:

Overall dimension	6510×2670×3400mm	Vibration method	Synchronous mode of table & mould
Pallet size	1400×750×45mm (Wooden) /14mm (Steel)	Vibration frequency	50-70hz
Working area	1250×700mm	Machine Power	71.7KW
Machine weight	18500kg	Cycle time	15s-25s Depending on the product size

Production Capacity:

Specification of products (mm)		Number of blocks per pallet	Pieces/ hour	Pieces/8 hours	Pieces/300 day(two shifts)

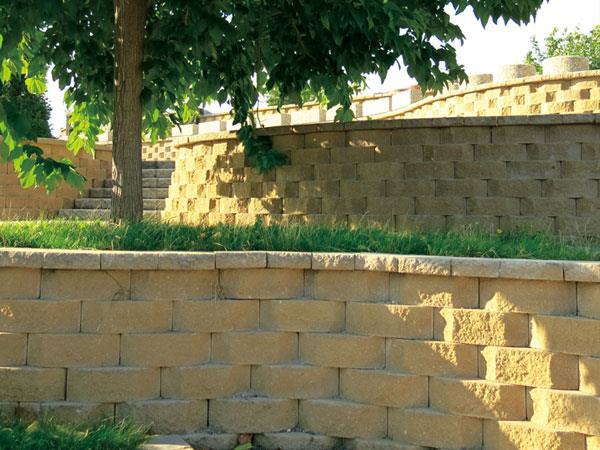

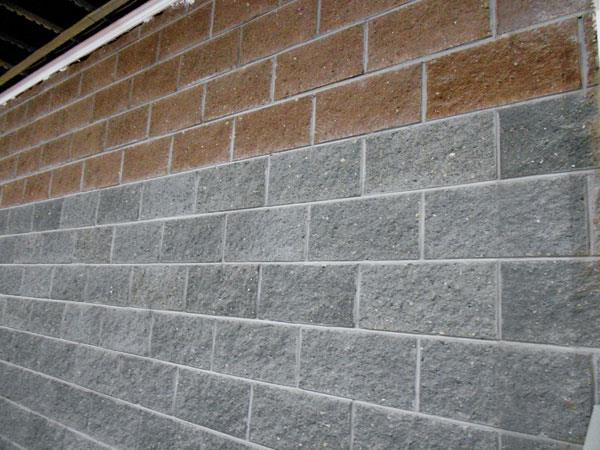

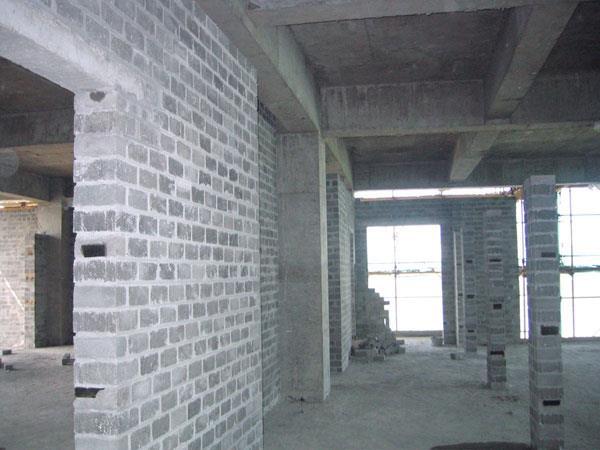

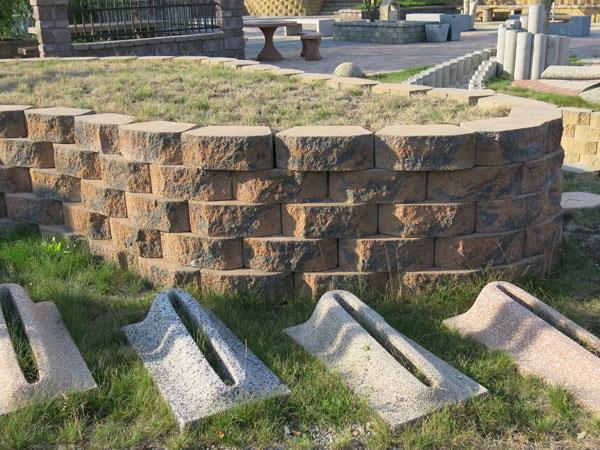

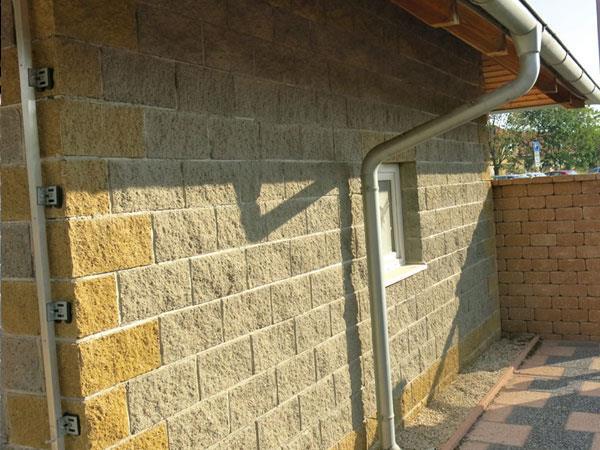

Block	400×200×200 390×190×190	9	2,160	17,280	10,368,000
Hollow Brick	240×115×90	25	6,000	48,000	28,800,000

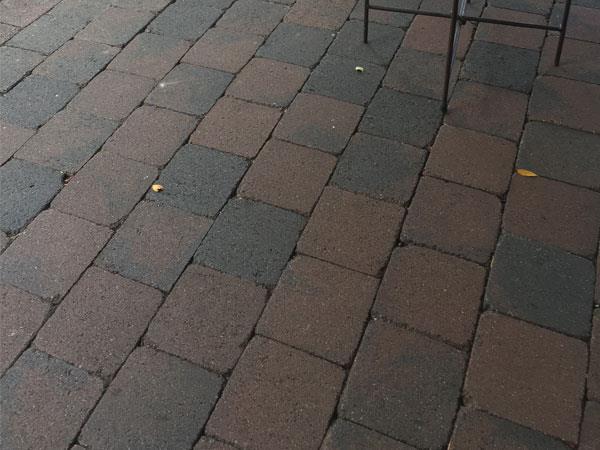

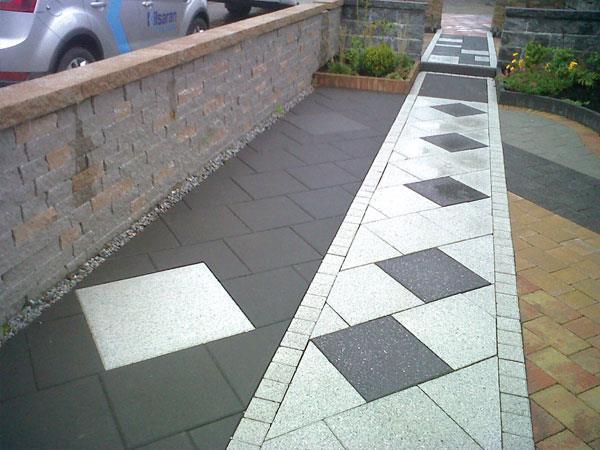

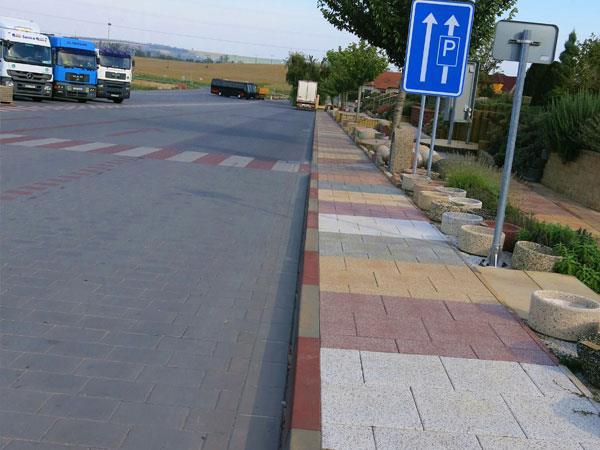

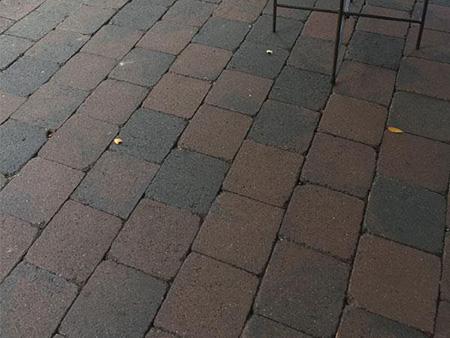

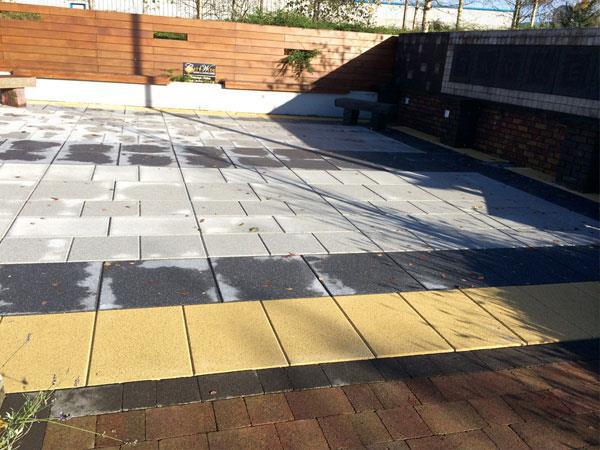

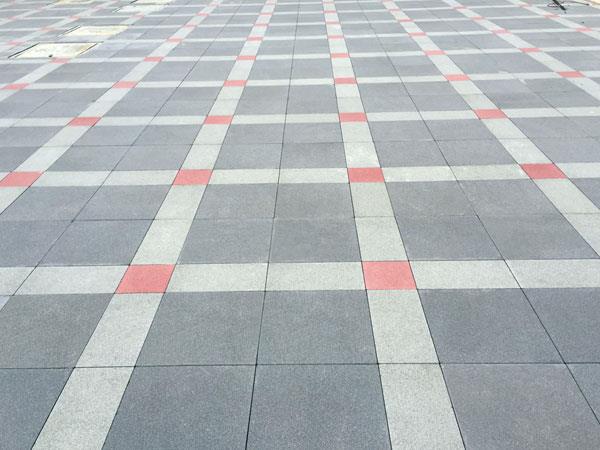

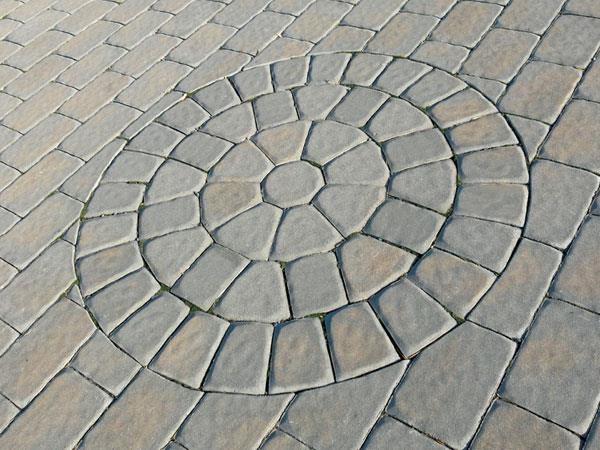

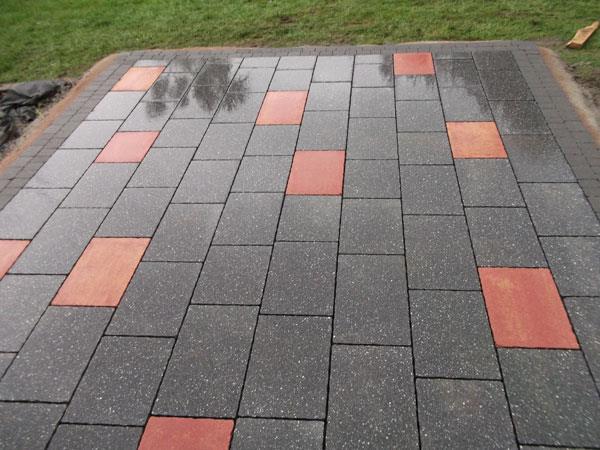

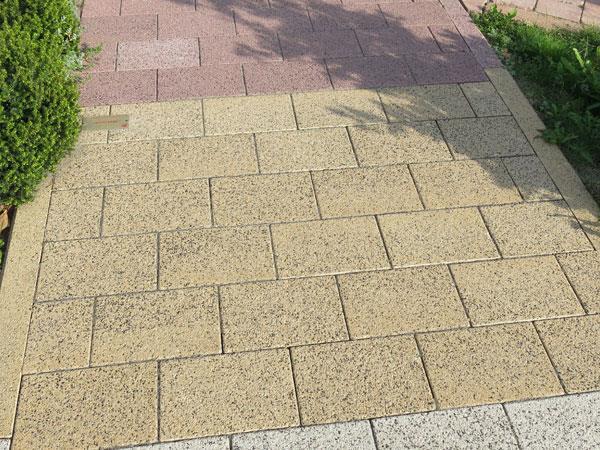

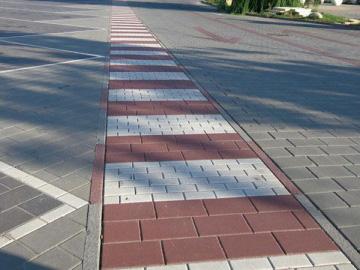

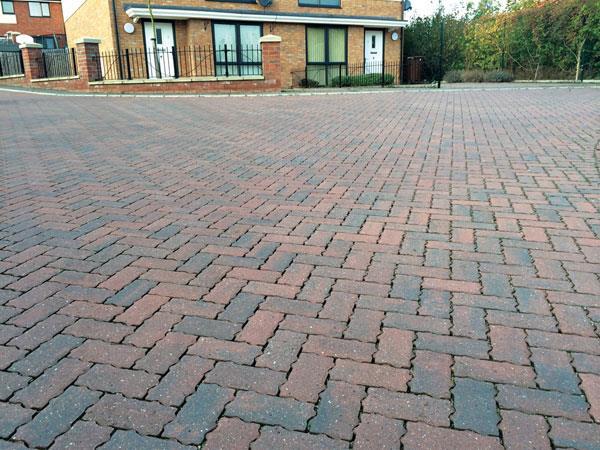

Paving Brick	225×112.5×60	25	6,000	48,000	28,800,000
Floor Brick	200×100×60	36	8,640	69,120	41,472,000
Standard Brick	240×115×53	50	12,000	96,000	57,600,000
