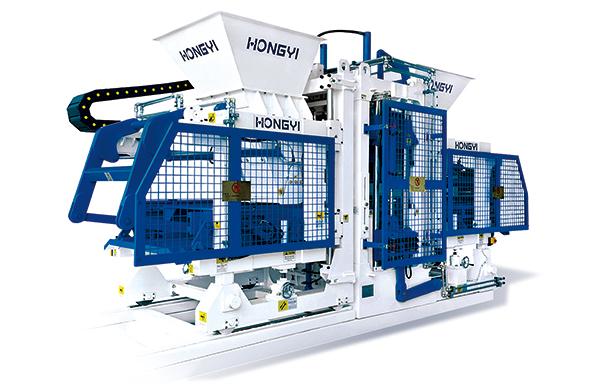

T1500 Concrete Brick Machine
The T1500 concrete brick machine adopts layered material placement, so that it can be used for producing building bricks, road paving bricks and revetment block bricks etc.
Technical Parameters:| Overall dimension | 4290×1950×2750mm | Vibration method | Synchronous mode of table & mould |
| Pallet size | 880×680×20mm(PVC) | Vibration frequency | 50-70hz |
| Working area | 800×600mm | Machine Power | 45kW |
| Machine weight | 10500kg | Cycle time | 15s-25s |
| Specification of products (mm) | Number of blocks per pallet | Pieces/ hour | Pieces/8 hours | Pieces/300 day(two shifts) | ||
| Block |  | 400×200×200 390×190×190 | 6 | 1,400 | 11,520 | 6,912,000 |
| Hollow Brick |  | 240×115×90 | 15 | 3,600 | 28,800 | 17,280,000 |
| Paving Brick |  | 225×112.5×60 | 15 | 3,600 | 28,800 | 17,280,000 |
| Standard Brick |  | 240×115×53 | 30 | 7,200 | 57,600 | 34,560,000 |
Previously made products
Paving Brick
Archaized Brick
Wall Brick
